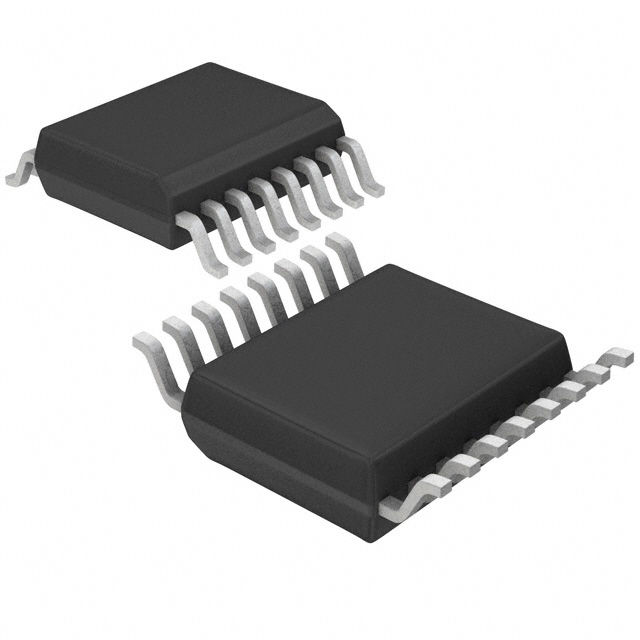

NCP1294EDBR2G
  • NCP1294EDBR2G
NCP1294EDBR2G

NCP1294EDBR2G

Product Details
Category:
Integrated Circuits (ICs) Power Management (PMIC) AC DC Converters, Offline Switches
Control Features:
Frequency Control, Soft Start, Sync
Product Status:
Active
Voltage - Start Up:
4.6 V
Mounting Type:
Surface Mount
Frequency - Switching:
1MHz
Package:
Tape & Reel (TR) Cut Tape (CT) Digi-Reel®
Series:
-
Fault Protection:
Current Limiting, Over Temperature, Over Voltage
Output Isolation:
Isolated
Supplier Device Package:
16-TSSOP
Mfr:
Onsemi
Voltage - Breakdown:
-
Voltage - Supply (Vcc/Vdd):
3.8V ~ 15V
Package / Case:
16-TSSOP (0.173", 4.40mm Width)
Duty Cycle:
85%
Operating Temperature:
-40°C ~ 125°C (TJ)
Internal Switch(s):
No
Base Product Number:
NCP1294
Topology:
Boost, Flyback, Forward
Payment & Shipping Terms
Stock
In Stock
Shipping Method
LCL, AIR, FCL, Express
Description
IC OFFLINE SW MULT TOP 16TSSOP
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description
Converter Offline Boost, Flyback, Forward Topology 1MHz 16-TSSOP
