EP4CE30F23I7N FBGA-484
  • EP4CE30F23I7N FBGA-484

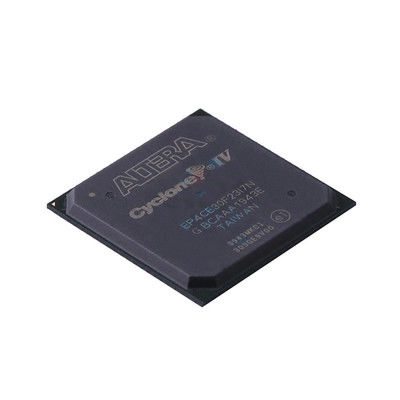

EP4CE30F23I7N FBGA-484

Place of Origin China
Brand Name Original Factory
Certification Lead free / RoHS Compliant
Model Number EP4CE30F23I7N
Product Details
Type:
Integrated Circuit
Brand Name:
Original Factory
Model Number:
EP4CE30F23I7N
Embedded Block RAM::
28620 Kbit
RAM::
48-bit
Temperature::
-55°C ~ 175°C (TJ)
Voltage - Supply::
2.375V ~ 3.465V
Products Name:
Integrated Circuit Chips
Payment & Shipping Terms
Minimum Order Quantity
8
Packaging Details
FBGA-484
Delivery Time
3-7 work days
Payment Terms
T/T, L/C, Western Union
Supply Ability
80000 Piece/Pieces per Month
Product Description

EP4CE30F23I7N FBGA-484



Product Description



  • XT interconnect technology for superior thermal performance
  • Enhanced avalanche capability
  • SMD package for direct integration to PCB
  • Sense pins for optimized switching performance



Product Specifications



Product Technical Specifications
EU RoHS Compliant
ECCN (US) 3A991d.
Part Status Active
HTS 8542.39.00.01
SVHC Yes
SVHC Exceeds Threshold Yes
Automotive No
PPAP No
Family Name Cyclone庐 IV E
Process Technology 60nm
User I/Os 328
Number of I/O Banks 8
Operating Supply Voltage (V) 1.2
Logic Elements 28848
Number of Multipliers 66 (18x18)
Program Memory Type SRAM
Embedded Memory (Kbit) 594
Total Number of Block RAM 66
IP Core Sub-frame Latency JPEG 2000 Encoder (BA130)|RapidIO to AXI Bridge Controller (RAB)|EtherCAT|EtherNET/IP|DS1/E1 TDM over Packet IP core
Provider Name Barco Silex/Mobiveil, Inc/Beckhoff Automation GmbH/Softing AG/Aimvalley
Device Logic Units 28848
Number of Global Clocks 20
Device Number of DLLs/PLLs 4
Dedicated DSP 66
PCIe 1
Programmability Yes
Reprogrammability Support No
Copy Protection No
In-System Programmability No
Speed Grade 8
Differential I/O Standards B-LVDS|HSTL|LVPECL|LVDS|RSDS|SSTL
Single-Ended I/O Standards LVTTL|LVCMOS|PCI|PCI-X|SSTL|HSTL
External Memory Interface DDR SDRAM|DDR2 SDRAM|QDRII+SRAM
Minimum Operating Supply Voltage (V) 1.16
Maximum Operating Supply Voltage (V) 1.24
I/O Voltage (V) 1.2|1.5|1.8|2.5|3|3.3
Minimum Operating Temperature (°C) 0
Maximum Operating Temperature (°C) 85



FAQ


Q1: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q2: How to buy your products?
A: You can buy the products from our company directly.Normally the procedure is sign the contract, payment by T/T,Contact the shipping company to delivery the goods to your country.
Q3: How about your delivery time?
A:Generally, goods would be shipped in 1-7 work days after payment received, finally depends on order quantities.
Q4: What is your MOQ?
A:Minimum order quantity starts from ONE piece,it depends your specific order!
Q5: HOW can we get samples from you?
A:Samples are available. Normally we take 2 days to arrange samples. If we have no business record with you before, we need to charge boot samples cost and post courier freight.
Q6:What is your products quality?Do you test all your goods before delivery?
A:Yes,We have 100% test before delivery,We can ensure the product quality of our company. All products have 30-90 days of quality assurance.

Any other more questions, please feel free to contact us. We are always at your service !

1.14V ~ 1.26V
