| Place of Origin | China |
| Brand Name | Original Factory |
| Certification | Lead free / RoHS Compliant |
| Model Number | IPT020N10N5ATMA1 |

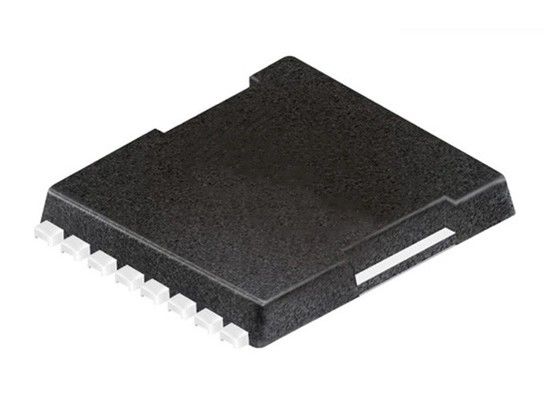

Power MOSFET Original Integrated Circuit IPT020N10N5ATMA1
Product Description
Product Specifications
| Part Number: | IPT020N10N5ATMA1 |
| FET Type: | N-Channel |
| Operating Temperature: | -55°C ~ 175°C (TJ) |
| Power Dissipation (Max): | 273W (Tc) |
| Series: | OptiMOS™5 |
| Technology: | MOSFET (Metal Oxide) |
| Input Capacitance (Ciss) (Max) @ Vds | 11000 pF @ 50 V |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 31A (Ta), 260A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 2mOhm @ 150A, 10V |
| Vgs(th) (Max) @ Id | 3.8V @ 202µA |
| Gate Charge (Qg) (Max) @ Vgs | 152 nC @ 10 V |
| Vgs (Max) | ±20V |
FAQ
Q1: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q2: How to buy your products?
A: You can buy the products from our company directly.Normally the procedure is sign the contract, payment by T/T,Contact the shipping company to delivery the goods to your country.
Q3: How about your delivery time?
A:Generally, goods would be shipped in 1-7 work days after payment received, finally depends on order quantities.
Q4: What is your MOQ?
A:Minimum order quantity starts from ONE piece,it depends your specific order!
Q5: HOW can we get samples from you?
A:Samples are available. Normally we take 2 days to arrange samples. If we have no business record with you before, we need to charge boot samples cost and post courier freight.
Q6:What is your products quality?Do you test all your goods before delivery?
A:Yes,We have 100% test before delivery,We can ensure the product quality of our company. All products have 30-90 days of quality assurance.
Any other more questions, please feel free to contact us. We are always at your service !
|
